Industrial Insulation

Tank insulation
LRBMattress insulation
Featured Solution

LRB Mattress for large industrial equipment

LRB Mattress is designed for thermal insulation of large vessels, boilers and high-temperature industrial plants. It is suitable for rectangular, cylindrical and irregularly shaped equipment, including process towers, storage tanks, spheres, large pipelines and other industrial installations. Its flexible construction conforms to complex surfaces, helping reduce heat loss, improve energy efficiency and provide reliable thermal protection.

Large vessels
Boilers
Chemical process towers
Storage tanks & spheres
No settling or sagging
Reusable after removal
Why LRB Mattress

Performance-focused insulation

Key characteristics from the existing product information, presented in a cleaner and easier-to-scan format.

Higher Thermal Performance

Made from Rockwool rather than slagwool.

No Settling or Sagging

Maintains insulation stability in service.

Longer Life

Can be reused after maintenance removal.

Environment Friendly

No feathering and eco-safe fibre chemistry.

Dry Process Manufacturing

Helps provide a clean, uncontaminated product.

Fast Installation

Application-friendly insulation design.

Capillary Resistance

Available where the application requires it.

Maintenance Friendly

Designed with industrial access and reuse in mind.

Product Range

Insulation applications

Visual product cards make the page easier for visitors to scan and understand.

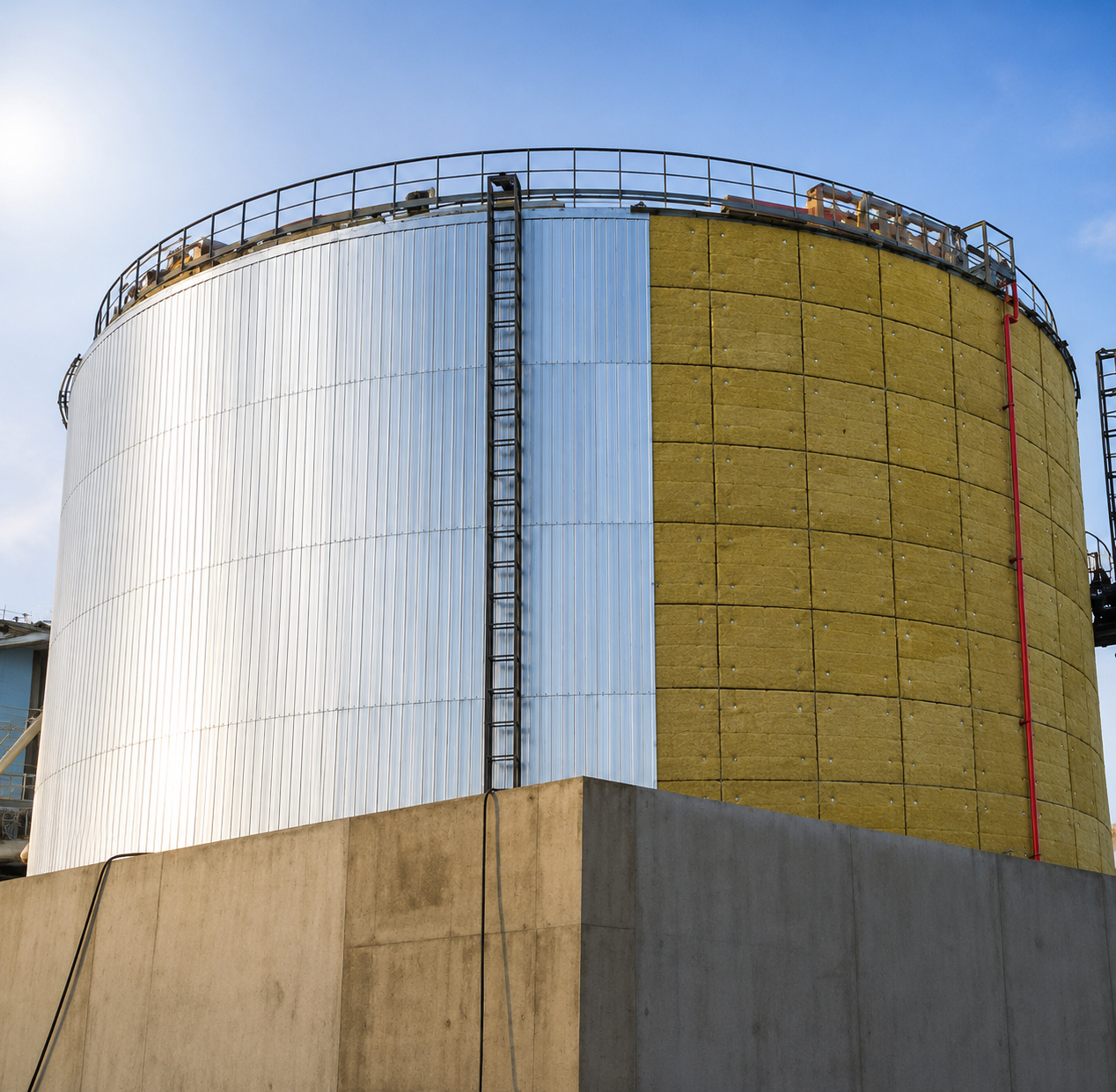

Tank insulation
Application

Tank Insulation

Thermal protection for storage and process tanks.

Turbine integral insulation
Application

Turbine Integral Insulation

Insulation solutions for turbine and equipment casings.

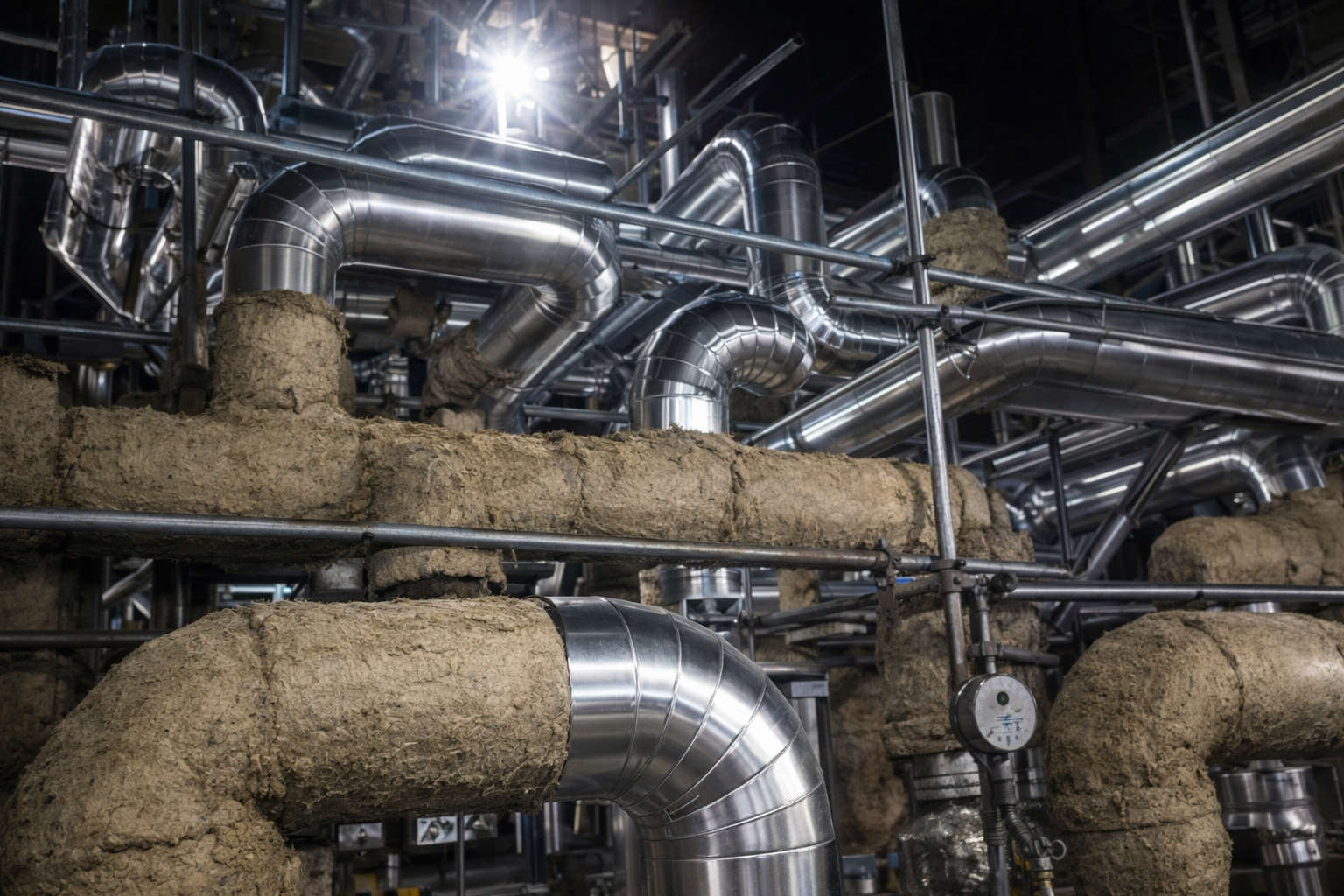

Rockwool pipe insulation
Pipe System

Rockwool Pipe Insulation

Preformed insulation for industrial pipework.

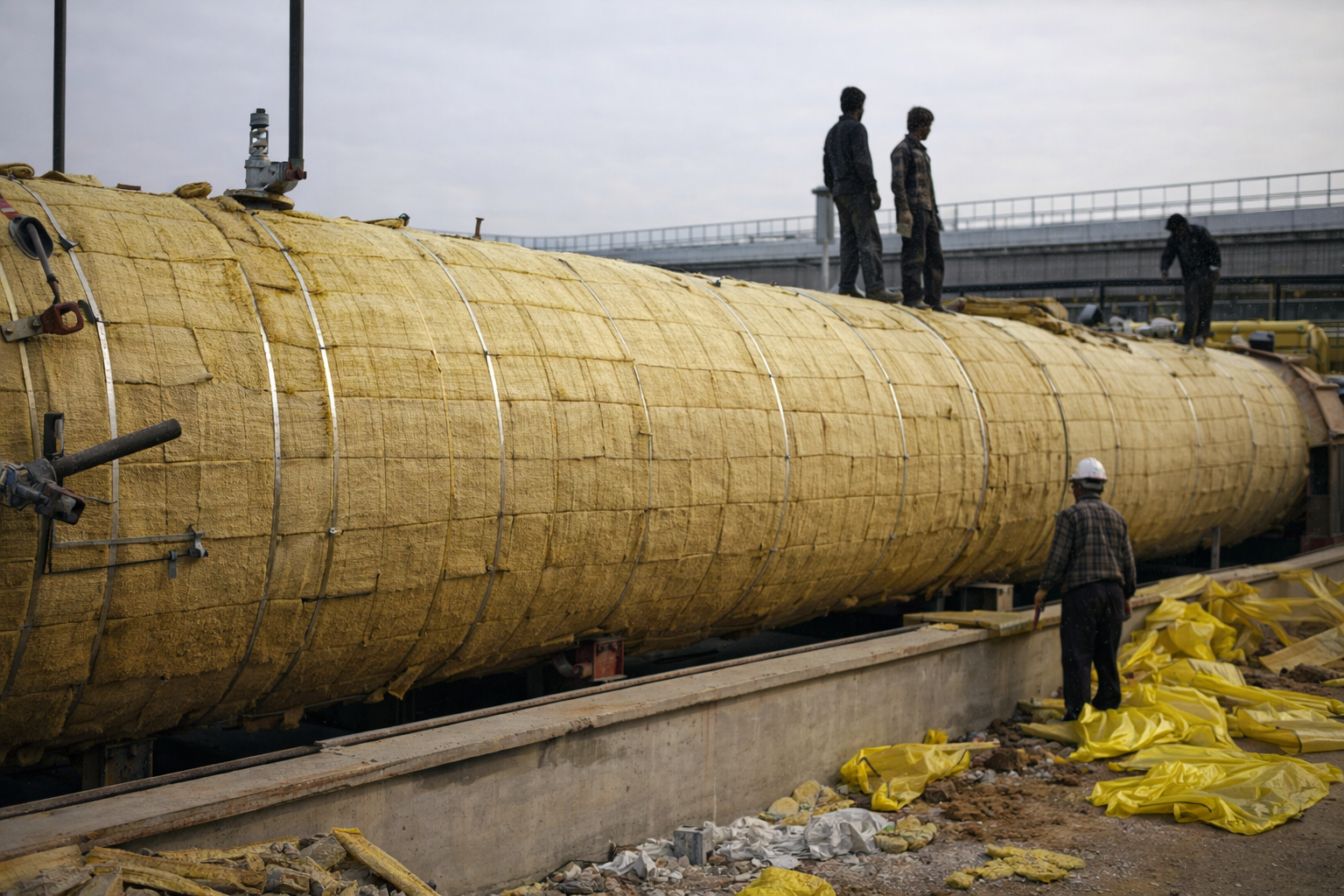

Insulation blankets
Flexible

Insulation Blankets

Application-friendly removable insulation solutions.

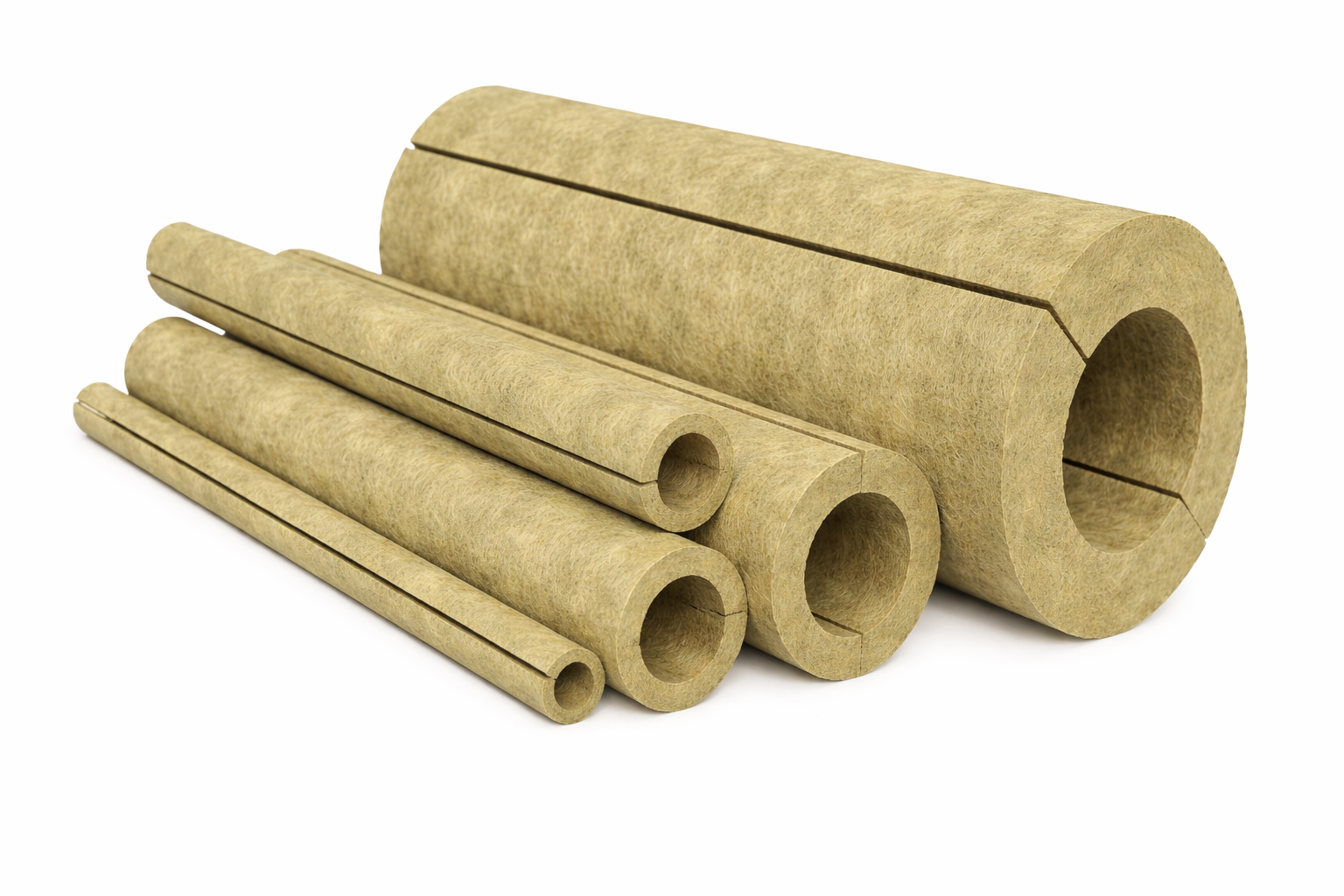

Preformed pipe insulation
Pipe Section

Preformed Pipe Insulation

Consistent fit and efficient installation on piping.

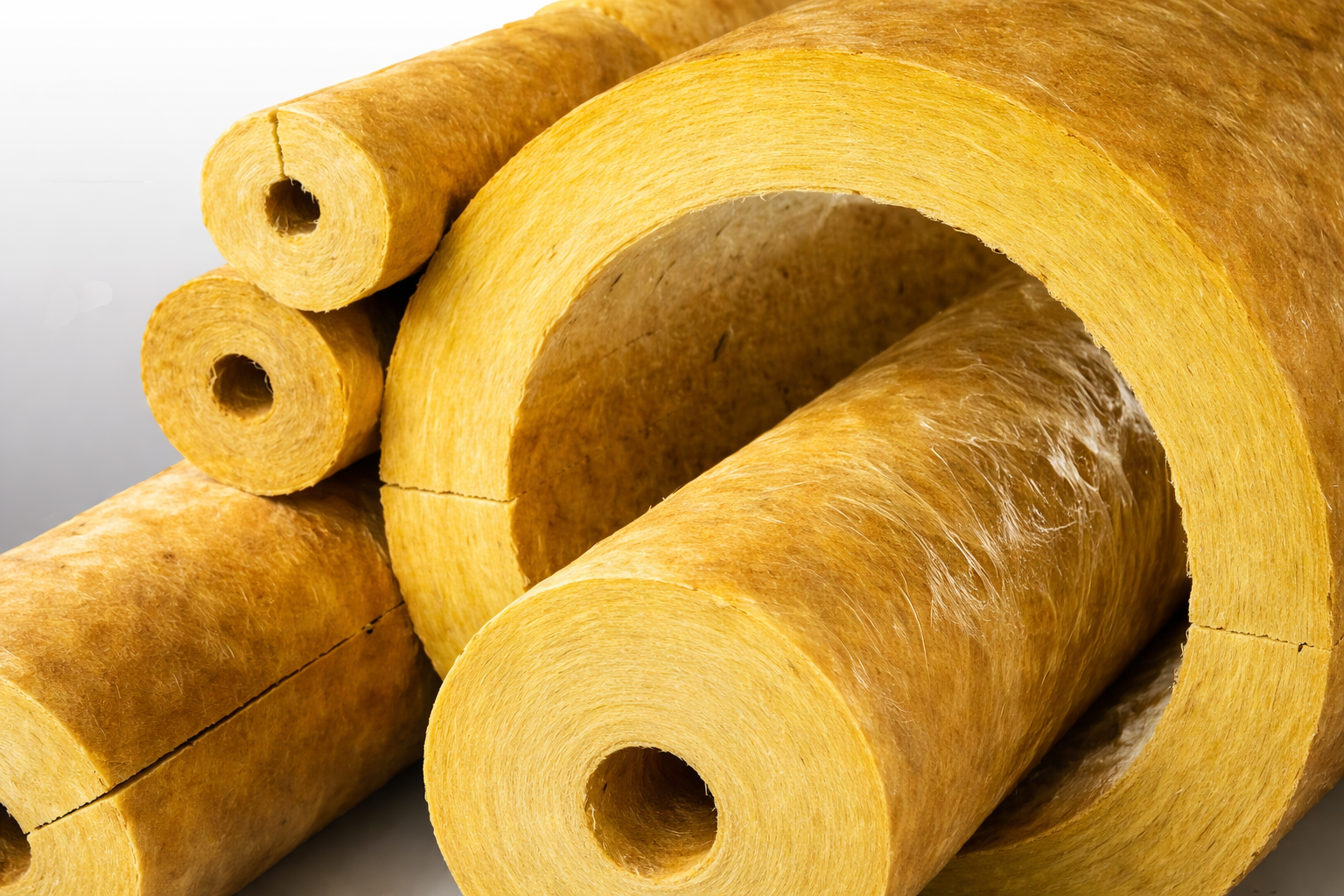

Mineral wool rockwool
Mineral Wool

Mineral Wool / Rockwool

Thermal insulation for industrial applications.

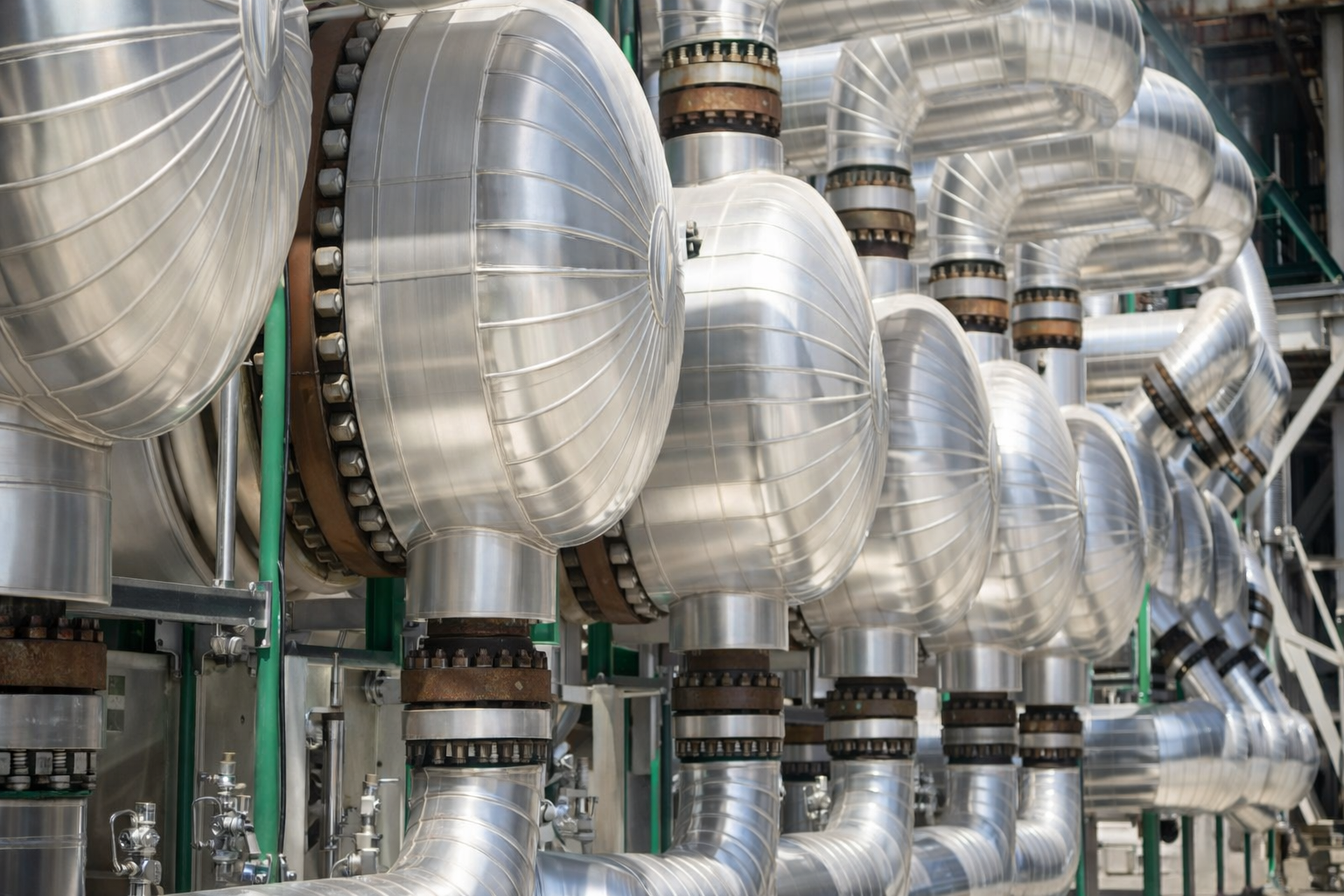

Metal cladding on insulated piping
Cladding

Metal Cladding on Insulated Piping

Protective outer finish for insulated pipework.

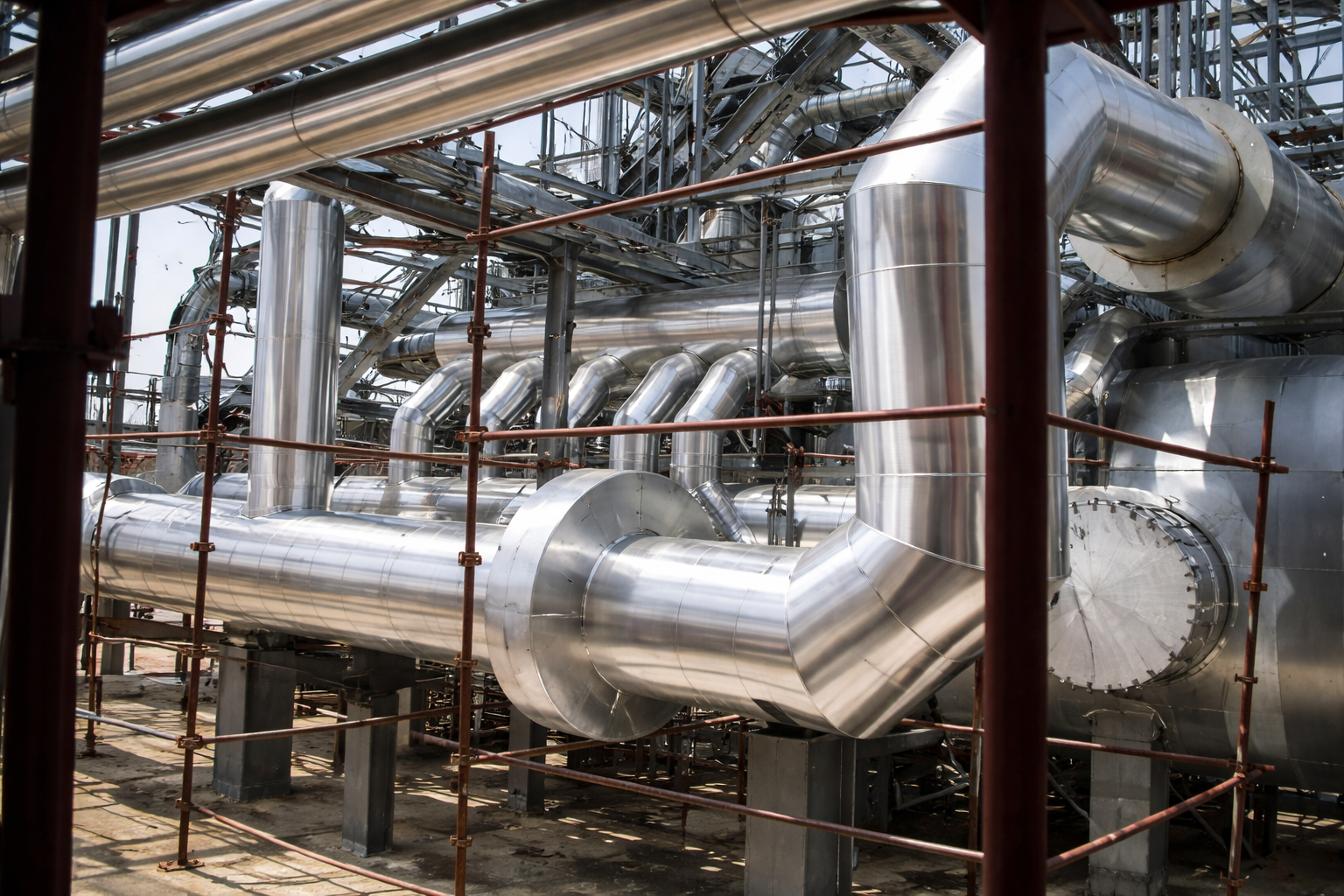

Thermally insulated process piping
Process Piping

Thermally Insulated Process Piping

Insulation solutions for process systems.

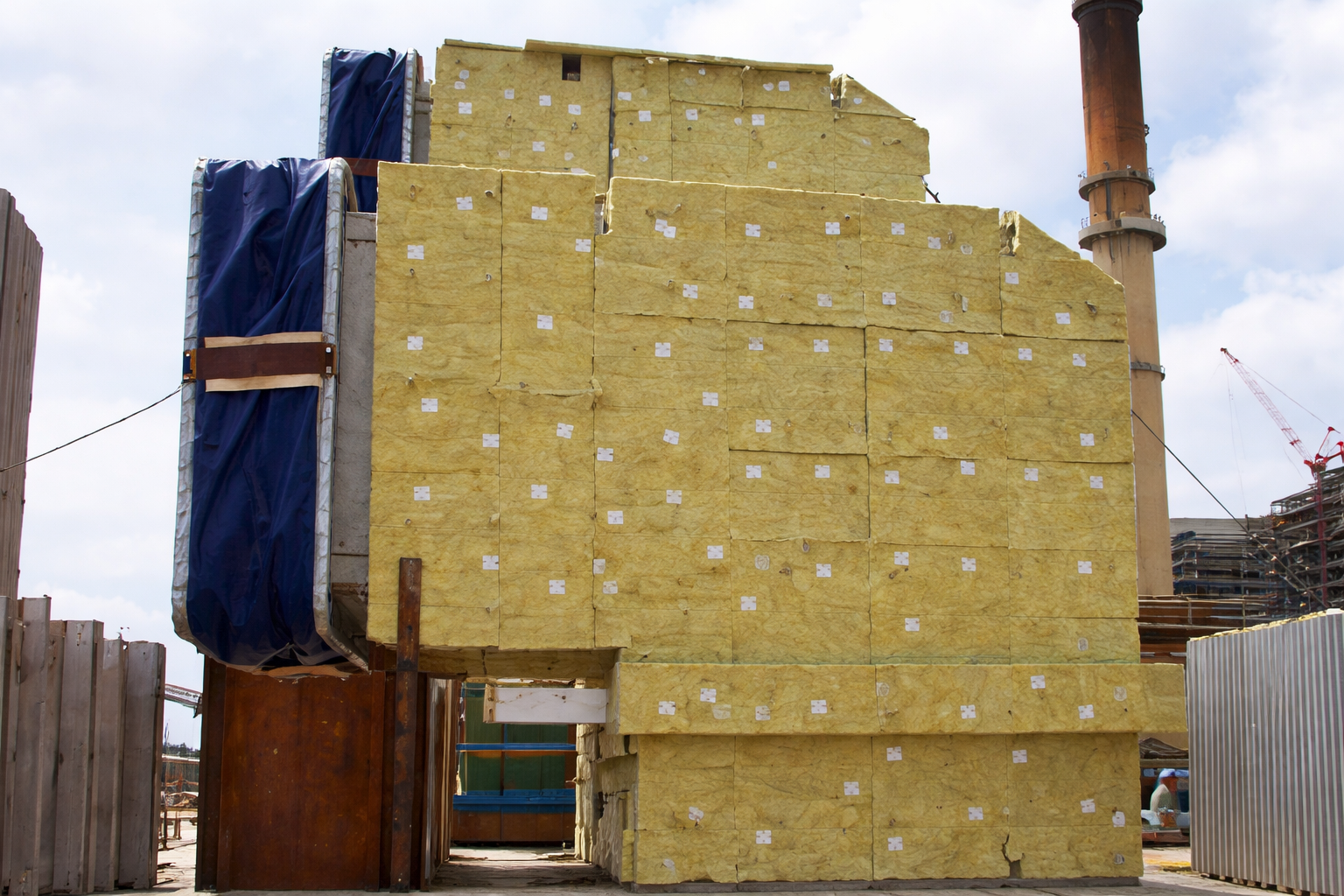

Thermal insulation slabs
Slabs

Thermal Insulation Slabs

Rigid insulation format for industrial requirements.

Technical Data

Preformed Rockwool Pipe Section

Rockwool Pipe Section conforming to ASTM C547, IS 9842:1994 and equivalent BS 3958 Part 4 is designed for thermo-acoustic insulation and fire protection of pipework operating at temperatures up to 750°C.

Manufactured from long, non-combustible rock fibres bonded with a high-performance binder.
Standard densities144, 150 & 160 Kg/M³
Application temperatures-100°C to +800°C
Standard thickness25, 40, 50, 60, 65, 75 mm
Diameter range12.5 mm to 350 mm NB
Standard length0.5, 0.75 & 1.0 Meters
Facing — optionalKraft Paper, Scrim Cloth, Canvas or Aluminium Foil
Additional thickness20 mm to 100 mm in 5 mm steps
Ordering notePipe outer diameter must be specified while ordering.
Industrial Applications

Designed around real-world systems

Explore examples of pipe, boiler, casing and process insulation applications.

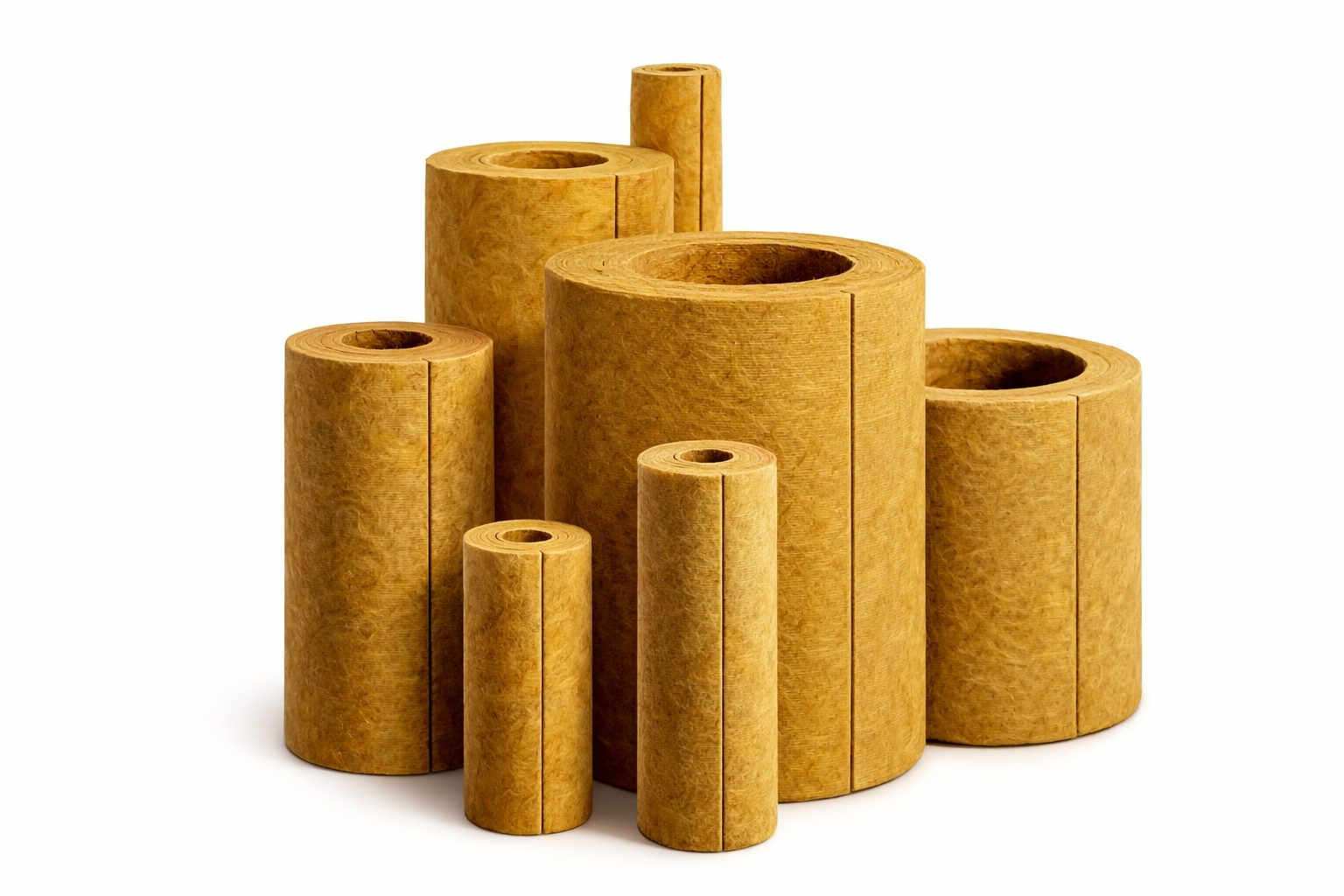

Glass wool pipe section
Glass Wool Pipe Section
Preformed pipe insulation
Preformed Pipe Insulation
Mineral wool rockwool
Mineral Wool / Rockwool
Metal cladding
Metal Cladding on Piping
Process piping
Thermally Insulated Process Piping
Thermal insulation slabs
Thermal Insulation Slabs
High Temperature

Ceramic Fibre Jacket Insulation

Ceramic Fibre Jacket Insulation is a high-performance thermal insulation solution designed for demanding high-temperature industrial applications. Manufactured from high-purity ceramic fibre materials, it provides excellent resistance to extreme temperatures while offering low thermal conductivity, good thermal stability and effective heat retention. Its lightweight and flexible construction makes it suitable for applications where reliable insulation, easy installation and long-term performance are required

Maximum temperature1200°C
Width610 mm
Length7300 mm
Thickness25 mm

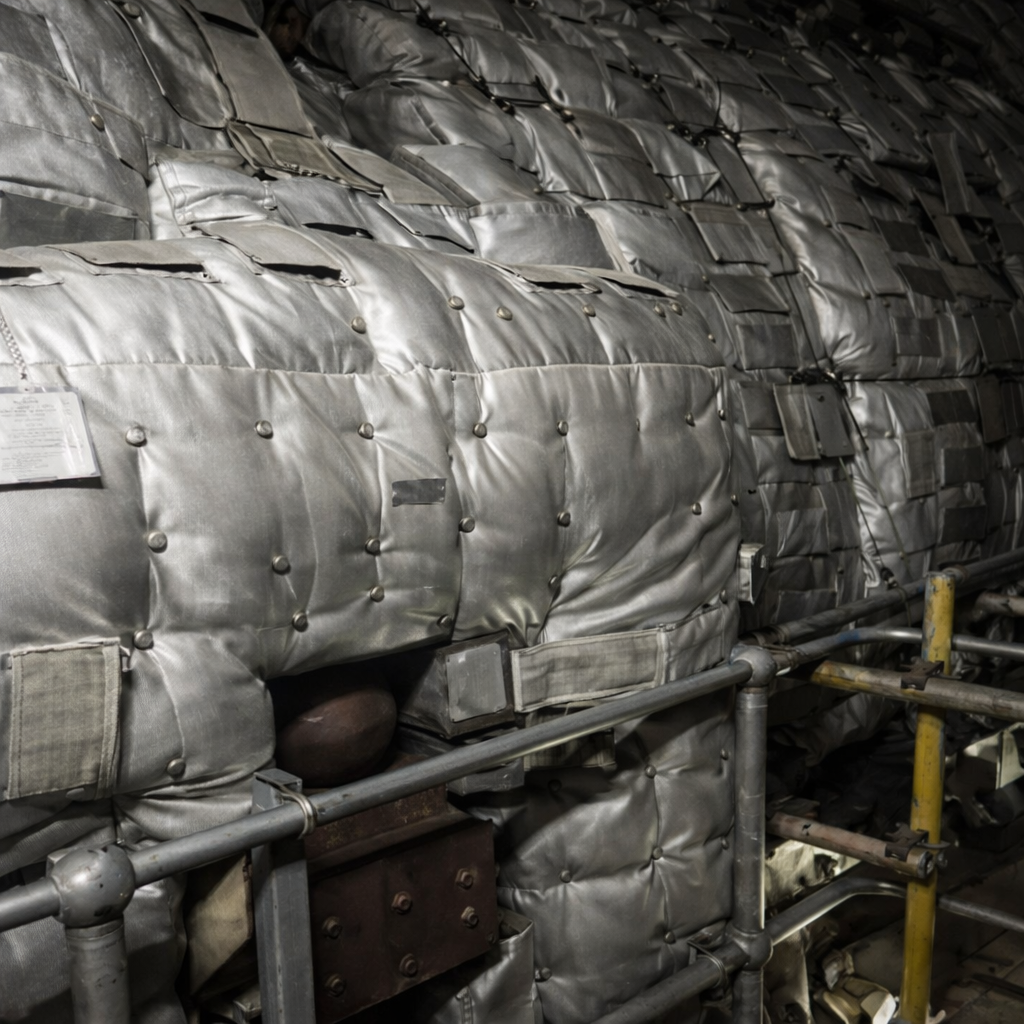

Ceramic fibre insulation
More Applications

High-temperature protection

A focused visual section for hot insulation covers, turbine casing and boiler thermal insulation.

Hot insulation cover
Ceramic Fibre

Hot Insulation Cover

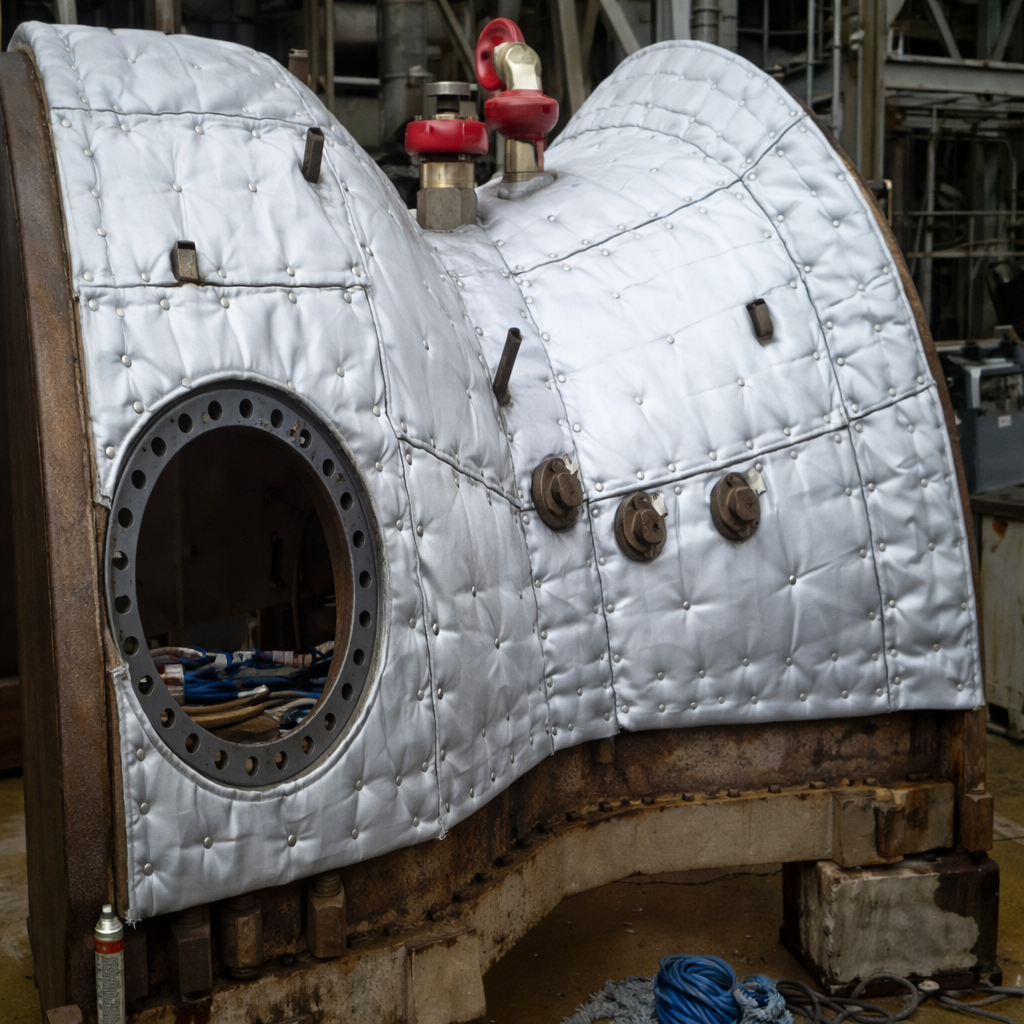

Turbine casing insulation
Equipment

Turbine Casing Insulation

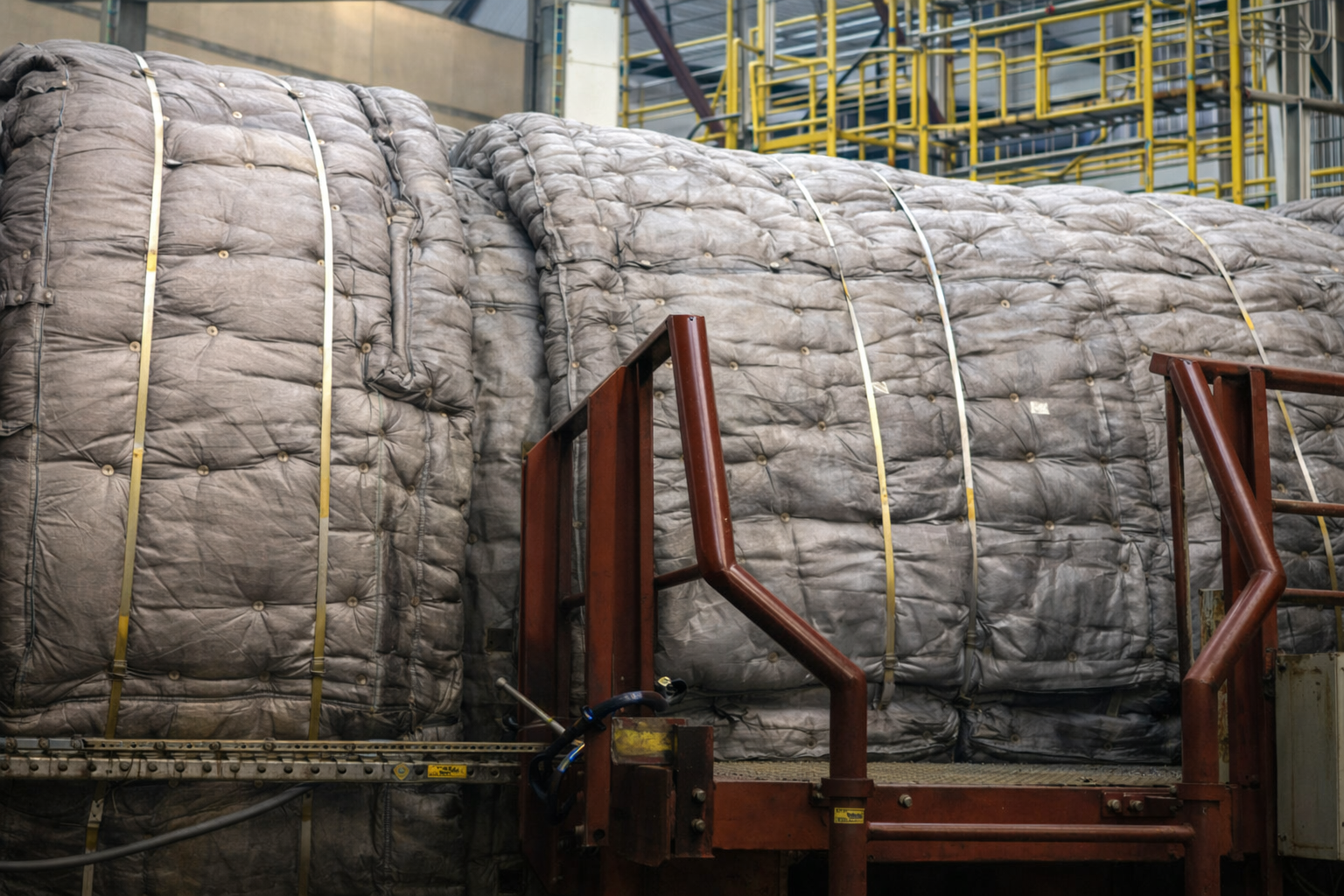

Boiler thermal insulation
Boiler

Boiler Thermal Insulation
